Vector Network Analyser - Bode 100

You can only make as well as you can measure. - Joseph Whitworth, Engineer (19th century)

Overview

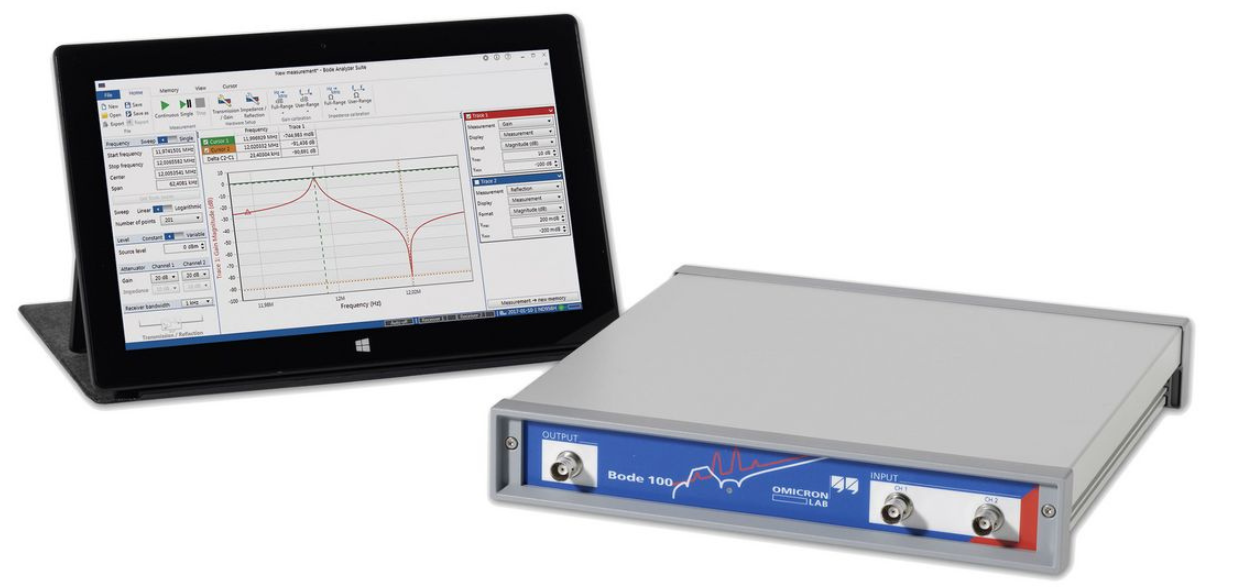

With the multifunctional Bode 100 you get an exact picture of your electronic circuits and components in a frequency range from 1 Hz to 50 MHz. Bode 100 is a state of the art Vector Network Analyzer which also works as Frequency Response Analyzer or Gain/Phase Meter and as a powerful Impedance Analyzer.

With it's high accuracy and great price-performance ratio, the Bode 100 is the best choice for industrial applications as well as research and educational labs.

Product brochure - Bode 100

(566 KB)

DOWNLOAD

Technical data sheet - Bode 100

(238 KB)

DOWNLOAD

Applications

Use Bode 100 to measure:

Complex gain of active and passive circuits

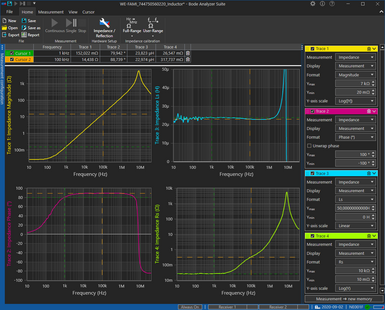

Complex impedance and admittance of active and passive devices
Swept S-parameters of electronic circuits and filters
Group delay characteristics

Easily analyze:

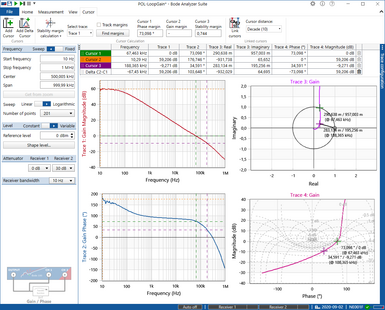

Stability of control circuits such as DC/DC converters in power supplies
Parasitics of passive components and circuit boards
Power-plane impedance for optimum decoupling
Reflection coefficient and return loss of filters, antennas or amplifiers
Ultrasonic and piezo electric devices
Resonance behavior of high Q-circuits like oscillating crystals
Resonance frequency and Q-factor of RFID and NFC tags and antennas

Check out the Application Notes for more interesting measurements...

Your Benefits

Advantages of Bode 100:

VNA & FRA in one device
Easy-to-use and intuitive software (Bode Analyzer Suite)
Easy data processing and data sharing
Highly accurate measurements
Calibration & repair service from manufacturer
Lightweight and portable hardware design without active cooling (silent lab)
Automation Interface (API) for automated measurements
Unbeatable price-performance ratio
High customer satisfaction

Key Features

Features of Bode 100:

Wide frequency range from 1 Hz to 50 MHz
Adjustable output level from -30 dBm to 13 dBm
Adjustable shaped level (variable signal level) over frequency
Switchable channel input impedance (50 Ω / 1 MΩ)
Highly sensitive inputs (superheterodyne receiver with 24 bit ADCs)
Narrow-band receivers for highest noise rejection

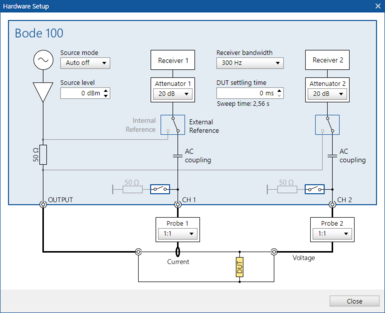

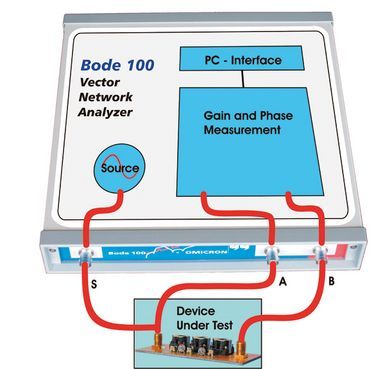

Flexible hardware design offering several measurement modes
Fanless and therefore absolutely silent on your bench

Scope of delivery

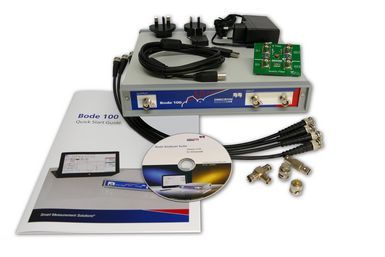

The Bode 100 system (OL000100) includes:

Bode 100 Vector Network Analyzer
Bode Analyzer Suite software
Printed Quick Start Guide (English)
Wide range power supply (with international plug adapters)
USB cable
4 x BNC cable 50 Ω (m-m)
1 x BNC T adapter (f-f-f)
1 x BNC straight adapter (f-f)
1 x BNC 50 Ω load (m)
1 x BNC short circuit (m)
Test object with quartz filter and IF filter on a PCB

Probes, injection transformers, signal injectors and amplifiers can be found in the accessories section.

User Interface

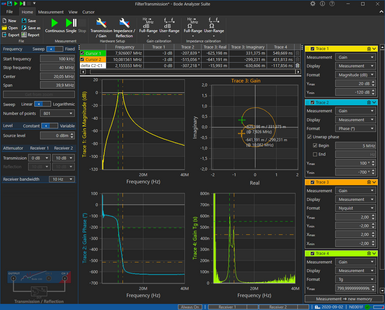

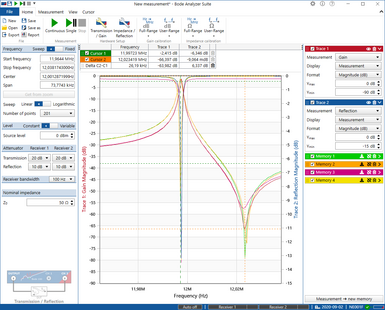

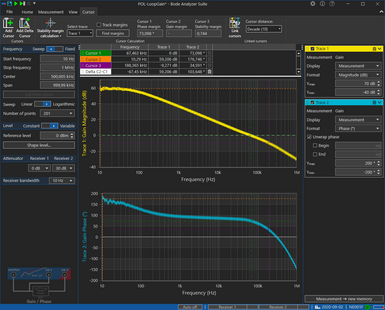

Bode Analyzer Suite

The Bode 100 is controlled via the Bode Analyzer Suite software, a powerful GUI for Windows PCs. Find out more or download the latest version from our webpage.

Automation

Some measurements have to be repeated over and over again ...

... therefore we added an Automation Interface to the Bode 100 right from the beginning. Today many customers are already using this Application Programming Interface (API) to build automated measurement setups involving the Bode 100. The Bode 100 can be controlled from any COM (OLE controller) compliant programming language such as:

MATLAB®
C#
VB.NET
Excel® with VBA
C++
TCL
Python®
Delphi®
etc...

Find out more about the Bode Automation Interface by having a look at the Automation Interface Reference. The Automation Interface is included in the Bode Analyzer Suite installer. Check out the Bode 100 download area.

In addition there is a LabVIEW® instrument driver available for download from www.ni.com.

Certificates

The Bode 100 complies with the current international standards for EMC, RoHS and product safety. For detailed information, please check out the certificate (TÜV) as well as the declaration of conformity (CE and UKCA) below:
