GSG-5/6 Series

Orolia GSG 5-6 Series GNSS Simulators

Contact Us

Other GNS Simulators


GPS/GNSS Simulators

Orolia's GSG-5 and GSG-6 Series GPS/GNSS satellite simulators are easy to use, scenario-based instruments that combine a powerful, feature-rich platform with industry-leading value and affordability for any requirement for GPS testing.





GSG-5 & GSG-6 Series Simulators Comparison Chart:


Orolia GPS/GNSS Simulator Comparison Chart


Single-channel GPS/GNSS L1 RF Generator

Orolia GSG-51 GPS_GNSS Simulator


View Datasheet


The GSG-51 is a GNSS signal generator that emulates a single satellite signal.

The main application is a simple but very fast manufacturing test, to assure that the assembly is correct, that the antenna is properly connected, and that the receiver can receive and identify a satellite signal.

It provides a fast and cost-effective solution for production test of GNSS-receivers in e.g. mobile phones with integrated GNSS-receivers.

Thanks to the wide RF level range from –65 to –160 dBm, the sensitivity of all types of GNSS receivers can be verified with a minimum of delay.

The 60 dB of extra power from normal test scenarios allows for splitting the signal many times.

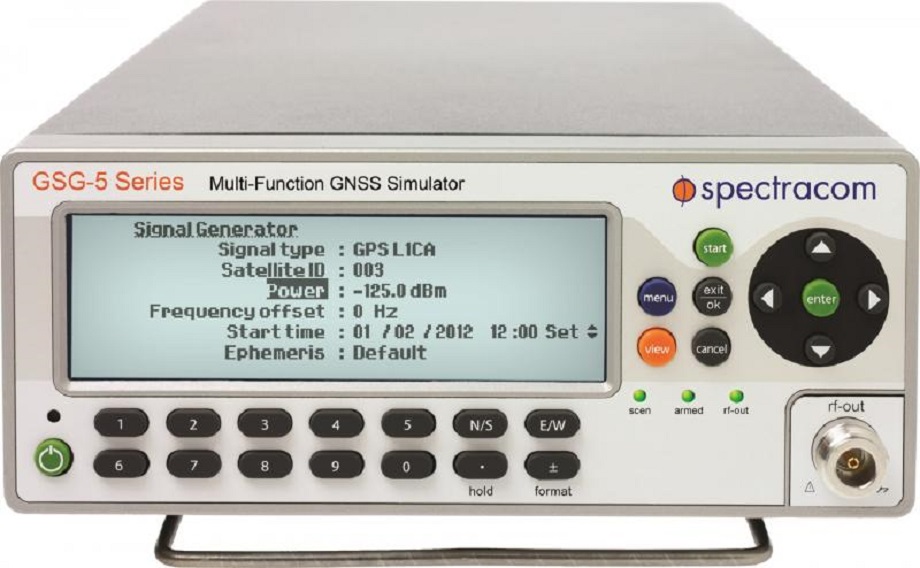

GSG-5 Series

Multi-channel Advanced GNSS Simulator

Orolia GSG-5 GPS_GNSS Simulator


View Datasheet


The GSG-5 series is a GPS, GLONASS, Galileo, BeiDou, and QZSS constellation simulator that generates all commercial signals in the standard L1 band.

It offers the standard set of features for testing GNSS systems.

With a base of four channels, configurable and upgradable to 8, 16, or more signals, this configuration is the perfect fit for navigational fix and position testing, for in-line product testing or engineering and development.

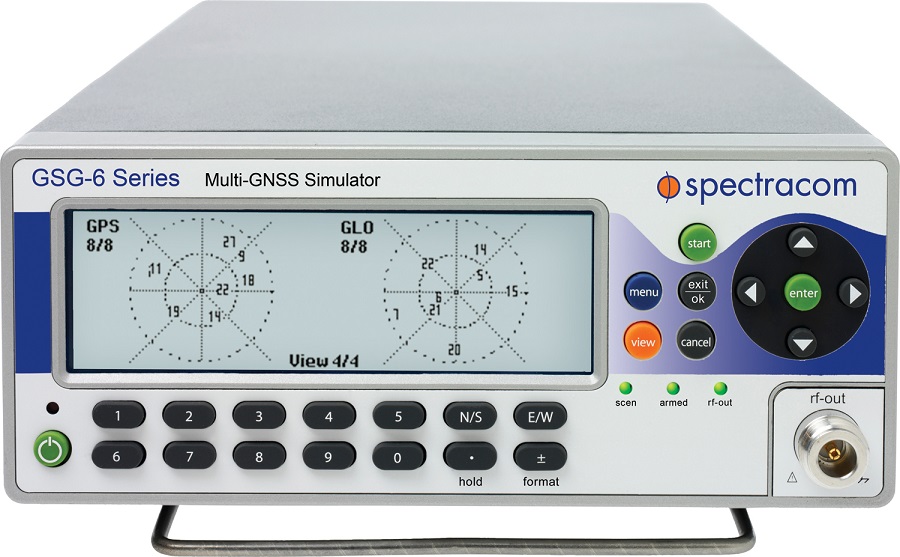

GSG-6 Series

Multi-Channel, Multi-Frequency Advanced GNSS Simulator

Orolia GSG-6 GPS_GNSS Simulator


View Datasheet


The GSG-6 Series family offers multiple frequency band operation, multiple GNSS constellation simulation, and expansion to many more channels.

Incorporating all of the features of the popular 5 Series family, the 6 Series line expands your capability to simulate all the new, emerging GNSS signals.

With a base of 32 channels, upgradable to 48, 64, or more, it provides navigational fix and position testing, for engineering and development testing.

The 6 Series simulator protects your investment by being upgradeable in the future to more frequency bands and channels (plug-in hardware upgrade) and more signal formats (firmware upgrade).

Spectracom GSG StudioView Software

GPS/GNSS Test Scenario Builder Software for Windows®

Orolia GSG StudioView software










View Datasheet


GSG StudioView™ offers an easy way to create, edit and back-up complex scenarios for a Orolia GSG series multi-channel GPS/GNSS simulator.

GSG StudioView allows users to build and manage visual trajectories and supports the import and conversion of trajectory files from other software applications and devices such as Google Earth.

Play this video to see an example complex scenario in action Play icon.png

Simulation of a smartphone and navigation app being driven through a road tunnel with an Intelligent Repeater System.


GPS/GNSS Application Packages

  • GPS Sensor Simulation

  • GPS Testing with Recorded Signals

  • RTK-DGNSS Virtual Reference Station

  • Assisted GNSS Testing

  • Real-Time Trajectories

  • Testing GPS Time Transfer

  • M-Code Receiver Testing
