Introducing the new 3 Series MDO and 4 Series MSO. Experience the largest high-definition displays, more channels and a built-for-touch user interface.

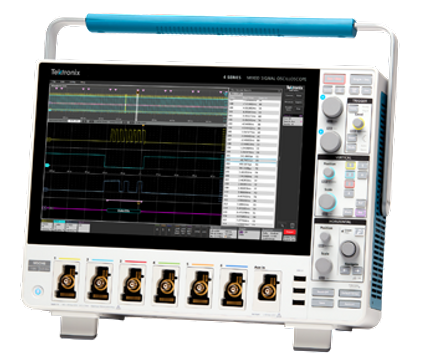

  4 Series MSO
  Mixed Signal Oscilloscope

  200 MHz - 1.5 GHz   *   4 or 6 Channels

  Introducing the new intuitive 4 Series MSO with more  display, more signals, more resolution and advanced capabilities built for every engineer for everyday use.

  • The largest 13.3-inch (HD (1920 x 1080) capacitive touch display in its class

  • Up to 6 FlexChannel inputs

  • 12 bit vertical resolution; up to 16 bits in Hi Res mode

  • Optional built in function generator

  • Support for over 20 serial bus protocols

Learn-More_button_TekVibrantBlue



Tektronix 4 Series MSO



 Tektronix 3 Series MDO

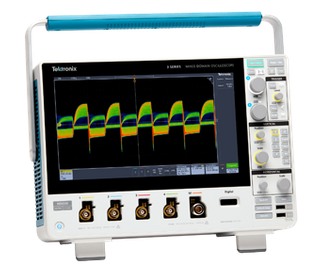

3 Series MDO
Mixed Domain Oscilloscope

100 MHz - 1 GHz   *   2 or 4 Channels

Introducing the new intuitive MDO scope with our award-winning interface, the largest HD display in its class and more capabilities, including RF measurements with an optional built-in spectrum analyser. All without using more bench space.

  • The largest 11.6-inch HD (1920 x 1080) capacitive touch screen in its class

  • Optional 16 digital channels for mixed signal analysis

  • Built in spectrum analyser available in 1GHz or 3 GHz versions

  • Optional built-in function generator

  • Wide range of serial bus decoding and triggering options

  • Less than 150mm deep on the bench




 Tek's Next Generation Portfolio of Scopes

Tek's Next Generation portfolio of scopes



These oscilloscopes are the direct result of what we have done for decades - asking questions and listening to engineers from around the globe. We took everything we learned from them and delivered more.



Scopes built from the engineer up




    Tektronix 3 Series MDO_thumb Tektronix 4 Series MSO_thumb Tektronix 5 Series MSO_thumb Tektronix 6 Series MSO_thumb
  Feature

New! 3 Series MDO

New! 4 Series MSO

5 Series MSO

6 Series MSO


  Line_TekVibrantBlue_156px.jpg Line_TekVibrantBlue_156px.jpg Line_TekVibrantBlue_156px.jpg


Bandwidth

100 MHz, 200 MHz,
350 MHz, 500 MHz
or 1 GHz
200 MHz, 350 MHz,
500 MHz, 1 GHz
or 1.5 GHz
350 MHz, 500 MHz,
1 GHz or 2 GHz
1 GHz, 2.5 GHz,
4 GHz, 6 GHz, 8 GHz
or 10 GHz

  Analog Channels 2 or 4 4 or 6 4, 6 or 8 4, 6 or 8
  Digital Channels 16 Up to 48 Up to 64 Up to 64
  Sample Rate (All Channels) Up to 5 GS/s 6.25 GS/s 6.25 GS/s 50 GS/s
  Vertical Resolution 8 bits 12 bits 12 bits 12 bits
  Display 11.6-inch HD
(1920 x 1080)
capacitive touch
13.3-inch HD
(1920 x 1080)
capacitive touch
15.6-inch HD
(1920 x 1080)
capacitive touch
15.6-inch HD
(1920 x 1080)
capacitive touch

  Record length 10M 31.25 M
62.5 M1
62.5 M
125 M1

Up to 1 Gpoints on all analog/digital channels


  FastFrameTM segmented memory - Yes Yes Yes
  Arbitrary Function Generator1 50 MHz 50 MHz 50 MHz 50 MHz
  Spectrum Analysis 1 GHz or 3 GHz
spectrum analyser1

Spectrum View
up to instrument bandwidth1

Spectrum View
up to instrument
bandwidth

Spectrum View
up to instrument
bandwidth


  Supported Serial Protocols I2C, SPI
RS-232/422/485UART
CAN, CAN FD, LIN, FlexRay
MIL-STD-1553
ARINC-429
I2S, LJ, RJ, TDM
USB2.0 (LS, FS, HS)





I2C, SPI
RS-232/422/485UART
CAN, CAN FD, LIN, FlexRay
MIL-STD-1553
ARINC-429
I2S, LJ, RJ, TDM
USB2.0 (LS, FS, HS)
10BASE-T, 100BASE-TX
SENT
SPMI
I3C

I2C, SPI
RS-232/422/485UART
CAN, CAN FD, LIN, FlexRay
MIL-STD-1553
ARINC-429
I2S, LJ, RJ, TDM
USB2.0 (LS, FS, HS)
10BASE-T, 100BASE-TX
SENT
SPMI
I3C

I2C, SPI
RS-232/422/485UART
CAN, CAN FD, LIN, FlexRay
MIL-STD-1553
ARINC-429
I2S, LJ, RJ, TDM
USB2.0 (LS, FS, HS)
10BASE-T, 100BASE-TX
SENT
SPMI
I3C


  Automated Compliance Test1  -  - Automotive Ethernet
10/100/1000BASE-T
USB 2.0




Automotive Ethernet
10/100/1000BASE-T
USB 2.0
2.5 and 5 GBASE-T
MPI D-PHY
DDR/LPDDR3


  Advanced Analysis1 Power Analysis Power Analysis
Advanced Power Analysis
Advanced Jitter and Eye Analysis
Power Rail Measurements
Advanced Power Analysis
Advanced Jitter and Eye Analysis
Power Rail Measurements
DDR3/LPDDR3 Debug and Analysis

  Windows Operating System1 - - Optional Optional
    Find-Out-More_button_TekVibrantBlue Find-Out-More_button_TekVibrantBlue Find-Out-More_button_TekVibrantBlue Find-Out-More_button_TekVibrantBlue
 1. Orderable option - not included with base instruments. May be upgraded after purchase
