Vicom with VIAVI Solutions, Shineway Technologies and ODM (a Ripley Brand)

Whether your company is small or large, long established or a new start-up and no matter what your optical fibre installation or maintenance task, Vicom has the test tools for you. Our partnerships with VIAVI SolutionsShineway Technologies and ODM bring together the world's leading optical fibre test equipment brands with the best of the lower cost brands.

There are times where the application, or perhaps budget constraints, present a dilemma - "I need top optical test equipment performance but my business case means I must look for a lower cost solution." The solution is Shineway Technologies or ODM optical test equipment from Vicom! Shineway's and ODM's full range of power meters, light sources and optical loss test sets have comprehensive feature sets, high reliability and the performance you need at a price you can afford.

VIAVI has been a major player in the Australian optical test equipment market for many years, and indeed the world optical test equipment market for over 25 years. They have an unsurpassed reputation for quality, reliability and ease-of-use which makes their products ideally suited to your application. Vicom’s partnership with VIAVI in Australia brings together VIAVI’s product leadership and with Vicom’s extensive optical test and measurement expertise – backed by local Australian repair and calibration support.


ShinewayTech logo.jpg

       Laser Sources



Intelligent Stabilized Laser Source


SLS-50 can generate highly stable optical signals at multiple wavelengths to precisely measure optical link loss and identify optical fiber paired with ShinewayTech OPM-50 Intelligent Optical Power Meter.

  • 6dB adjustable power output range
  • Automatic wavelength identification/switch
  • Remote reference value setting
  • FTTx applicable
  • USB power charging
  • No warm-up, quick start
  • Backlight
  • Over 40 hours continuous operation
  • Pocketsize, lightweight and easy-to-use
  • CE, FCC, FDA certificates




 Entry-level Stabilized Laser Source

SLS-21 series Stabilized Laser Source paired with ShinewayTech optical power meters can meet the test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on singlemode and multimode fibers in LAN/WAN/CATV systems, offering high quality, stability and competitive costs

  • Applicable on singlemode/multimode fibers
  • Unique Output Power Display
  • CW/MOD tones output
  • Quick response, no warm-up
  • Interchangeable connectors: FC/SC/ST
  • 9V alkaline battery/AC adapter
  • Power saving: Auto-off setting
  • Pocketsize, lightweight and damp-dust-shock proof
  • CE, FCC, FDA certificates




 Multi-Wavelength Laser Source

MLS-20 series multi-wavelength Laser Source paired with ShinewayTech optical power meters can meet the test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on single mode and multimode fibers in LAN/WAN/CATV systems, offering high quality, stability and competitive costs.

  • Multi-wavelength models available: 650/850/1300/1310/1490/1550/1625nm
  • 650nm visible laser source for break and macrobend detection
  • CW and modulation (270,1K, 2KHz) output modes
  • 1625nm wavelength with optical power meter to measure upper limit loss in DWDM
  • Dual-way power supply: 1600mAh battery/ optional power adapter
  • Low battery indicator
  • Auto off function
  • CE, FCC, FDA certificates




ODM logo.jpg

     Laser Sources

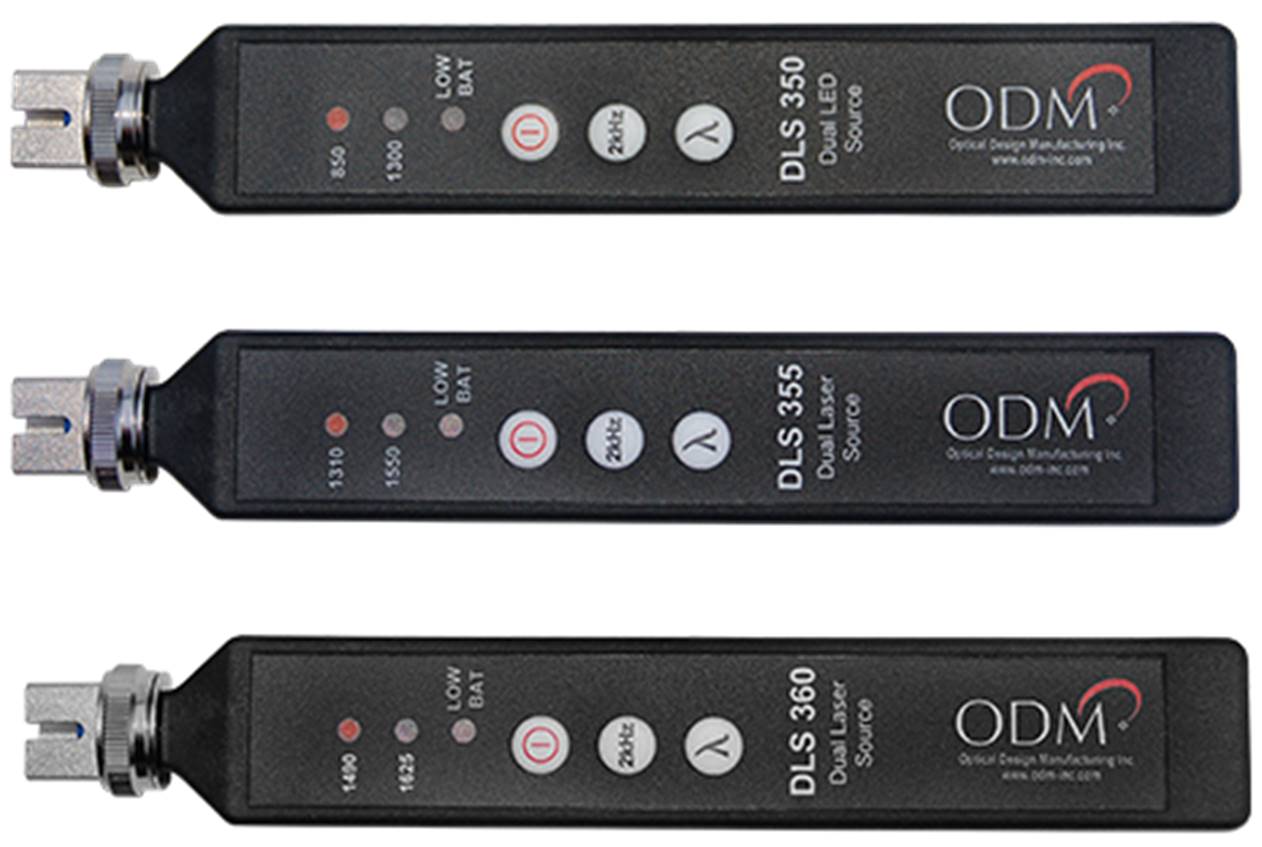

DLS350 / DLS355 / DLS360

Handheld Dual Light Sources

The DLS 3XX series of dual light source allows stabilized power levels for accurate loss measurements on multi mode systems. Technicians can utilize each of the wavelengths included in this light source to reference and test with RP 4XX series optical power meters and gather measurements to meet international standards.

The DLS 3XX provides a 2 kHz tone output which is recognized by the RP 4XX series power meters; the incoming 2 kHz signal is identified and an audible alert is provided by the power meter. This 2kHz signal will also allow fiber identification when used with non-invasive fiber identifier devices, such as the LFI 110.

The dual light source comes with a female SC adapter to allow connection to test jumpers and fiber under test. Easy removal of the adapter means that the light source ferrule can be cleaned to prevent contamination of test jumpers. Additional adapters are available







DLS650 / DLS655

Hand-Held Dual Light Sources with WaveID

The DLS65X optical light source provides multiple wavelength options to meet modern fiber optic testing needs. The base model DLS650 outputs 850 and 1300nm wavelengths in either single or dual mode and the DLS655 outputs 1310 and 1550nm.

When combined with the RP 560 model optical power meter, this LED source can greatly reduce the time needed to test fiber cables with its automated wavelength switching feature. The unit periodically switches between available wavelengths, and the power meter recognizes each time the switch occurs, allowing multiple loss tests to be completed simultaneously.

Easy removal of the included SC adapter allows the light source ferrule to be cleaned, preventing contamination of test jumpers. Additional adapters are available.

This device maintains full compliance with all FDA and CFR standards for light-emitting products.







Light Source

 OLS-85 Series

 Light Source

The SmartClass Fiber OLS-85 handheld light source is a professional, versatile, and compact instrument used for fibre-optic network qualification and certification. Its specific wavelength combinations make it optimal for link loss testing and long-haul, metro, and access telecommunication network characterization, as well as data center and local area network testing.

In addition to providing a full day of battery-operated field use, the SmartClass Fiber OLS-85 is perfect for fixed installations in central offices, production environments, and laboratory workbenches because it can operate via mains with remote-control capabilities via USB 2.0 and Ethernet.



ShinewayTech logo.jpg

Visual Fault Locator / Visible Laser Pen



 Visible Laser Pen


Highly efficient pocket-size visual fault locator—the ideal complementary tool for any fibre-testing technician.

VLP5A and VLP5B are visual fault locating tools for detecting and highlighting breaks, tight bends, splices or defective connectors on optical fibres. They are perfect complementary and handy tools to OTDRs and loss test sets for their visual detecting method in close range such as in the OTDR deadzone and inhigh-fiber-count environments.

  • Pen-size & lightweight
  • No warm-up, fast start-up
  • Max detecting range ≥10km
  • Operation mode: CW/MOD
  • ±8KV ESD protection
  • CE certificates
  • Solid: Dust-shock proof
