Time & Frequency References & Systems

SecureSync Time & Frequency Reference System

• Synchronize to GPS, SAASM GPS, multi-GNSS and many other timing references
• Generate virtually any time and frequency output signals
• Choose from a variety of internal oscillator options
• Built-in high-performance NTP server; PTP options
• STL Option - add STL to GPS or GNSS input references to improve resilience, or use STL alone for indoor applications.

• Modular (configure-to-order) ruggedized shock and vibration-tested chassis (1RU)
• Exceptional operating temperature range of -20°C to +65°C
• Secure network management and control
• Platform approach allows easy integration of specific capabilities

Supporting a wide variety of network synchronization and management protocols, the base model comes with a built-in 10/100 base-T Ethernet port for network management and high-performance NTP which can serve more than 7,500 NTP requests per second. It includes all the latest functions of NTPv4. It can be deployed in combination with other stratum-1 NTP server(s), can be used in a stratum-2 configuration, and can be expanded through option modules.

• High bandwidth NTP performance
• Stratum 1 via GPS and other references or Stratum 2
• IEEE-1588 PTPv2 grandmaster option
• STL Option - add STL to GPS or GNSS input references to improve resilience, or use STL alone for indoor applications.
• Modular hardware supports variety of interfaces and timing signals including 3 additional 1 GbE ports
• Multiple prioritized reference inputs


• Internal precision time-keeping via TCXO, OCXO or Rb atomic clock
• Secure web-based user interface
• Built-in network sync monitoring option
• Secure network management: enable or disable protocols
• IPv4/IPv6 dual stack
• Alert notifications via SNMP Traps and e-mail alerts
• CLI/SSH access for automation and scripting
• Best-in-class 5-year warranty

Internal Oscillator

• Derives the precision of frequency signals
• Maintains accuracy if loss of references (holdover)
• Quartz or Rubidium
• Low phase noise options
• Low-G sensitivity option

GPS/GNSS Receiver

• GPS, Galileo, GLONASS, BeiDou, and more
• Commercial L1
• Dual frequency
• SAASM GPS options

External Time & Frequency References

• Mulitple prioritized
• Network sync (NTP, PTP)
• 1PPS, 10 MHz from external clocks
• Timecode
• Ground-based radio signals

Synchronization

• High bandwidth NTP
• PTP options
• Assisted GPS
• Sync monitoring
• High bandwidth NTP
• PTP options
• Assisted GPS

Management

• HTTP
• SSL/SSH
• SNMP
• SYSLOG
• IPv6/IPv6
• LDAP/Radius
• SMTP

Signal Types

available for signal generation and/or external references

• Frequency
• 1PPS
• IRIG
• HaveQuick
• STANAG
• Timecode (other)
• T1/E1

• Programmable clock
• Alarms
• Event capture
• Fiber optic interfaces
• Network interfaces
• Standard or custom interfaces
• Custom signals

SecureSync® offers set-up, configuration and monitoring in a variety of ways, such as the front panel, RS-232 “console” port, or through many network services. However, its feature-rich browser interface provides the greatest access to all available tools.

Overview

Demonstration

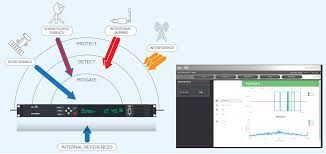

Interference Detection & Mitigation

SecureSync Interference Detection Suite is an interference detection suite that keeps your GPS/GNSS Synchronization safe from vulnerabilities caused by jamming and spoofing.

PRISMA Compliance is the first and only software solution that provides true UTC traceability and real-time reporting to comply with MiFID II and FINRA requirements. Gather, analyze and report on all the elements in your timing network in real time.

Introduction

Data Sheet

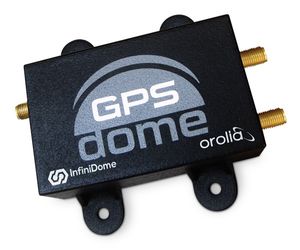

GPSdome Anti-Jammer

GPSdome is a small-sized, add-on device that provides protection against GPS jamming, ensuring continuity of autonomous navigation and operation during jamming conditions. No other solution that offers such protection is as small, light, affordable or as easily installed as GPSdome.



The Model 9483 NENA-compliant GPS master clock continues Spectracom's legacy of bringing essential time synchronization to public safety answering points (PSAPs) and other emergency and command and control systems.

More than 4,500 PSAPs across North America trust a NetClock master clock / time server to validate 911 event records, improve response times and facilitate interoperability with Legally Traceable Time®. The latest NetClocks are easier than ever to install and manage while maintaining strict compliance to the North American National Emergency Number Association’s (NENA) Master Clock Standard #04-002. Features support Next-Generation 911 initiatives and has been tested against NENA’s Security for Next Generation 9-1-1 Standard #075-001.

NetClock GPS NTP Server

Spectracom’s NetClock Model 9489 delivers worldwide, split-second timing for an NTP network with the highest security, reliability, and ease of management. It is designed for applications requiring an affordable but state-of-the-art GPS NTP server.

For today’s network and computer systems that require time-sensitive data for such tasks as logging events, records management, network optimization and troubleshooting, and synchronizing operations, we offer our high performance NTP server technology in this specific NetClock model, and as a direct replacement for previous generation models: 8189, 9189, 9289, and 9389.

Epsilon EC-20S GPS Clock

High-performance GPS Clocks are designed to exceed digital TV, digital Radio, 4G base stations, satcom time and frequency synchronization requirements.

Epsilon Clocks provide accurate and stable time and frequency signals for your high-performance synchronization application. The unit’s optimized architecture is well-suited to transmitter synchronization of digital broadcast signals (DVB-T/T2, T-DMB, DAB or DRM) in Single Frequency Networks (SFN) modes: the high port density allows to synchronize many emitters simultaneously on the same site.

Epsilon SAS Switch & Amplifier System

SAS-E is a high performance, highly manageable and reliable solution for distributing time and frequency signals for satcom, digital TV or audio broadcast, microwave links, satellite ground stations applications.

The Epsilon™ Switch and Amplifier System (SAS-E) provides a cost effective way to extend distribution of time and frequency signals (pulse, low phase noise frequency signal, Time of Day), as a signal amplifier. Thanks to analog amplification, SAS-E adds very little phase noise to the input frequency and ensures high RF isolation. It is therefore suitable for reference frequency distribution towards transmitters, up-converters, micro-wave links. Pulse regeneration is transparent to pulse duration and period: SAS-E is therefore suitable for distribution of any pulse encoded signal like 1 pps, DCLS IRIG, etc.

The SecureSync® platform was designed for the rigors of time and frequency synchronization For Land Mobile Radio.

SecureSync® combines Orolia’s precision master clock technology and secure network-centric approach with a compact modular hardware design to bring you a powerful time & frequency reference system for Public Safety LMR, Military, and commercial applications.

Simulcast systems rely on precise time and frequency to ensure the reliability of critical communications systems such as police radio. This configuration of SecureSync is a drop-in replacement for the earlier generation of Ageless® Master Oscillators (models 8194/95/97). It can be configured for the specific needs of the system.

SecureSync® combines Orolia’s precision master clock technology and secure network-centric approach with a compact modular hardware design to bring you a powerful time & frequency reference system for simulcast systems and other critical land mobile radio applications.

• Multiple, prioritized input references - GPS, PTP, internal
• Internal precision time-keeping via OCXO or Rb oscillator
• A wide variety of output signals supported via modularity
• Built-in NTP server; PTP master/slave options

• Precise frequency references for carrier accuracy
• Synchronized CTCSS outputs
• Configurable 1PPS offsets
• Telecom frequency and data rate synchronization

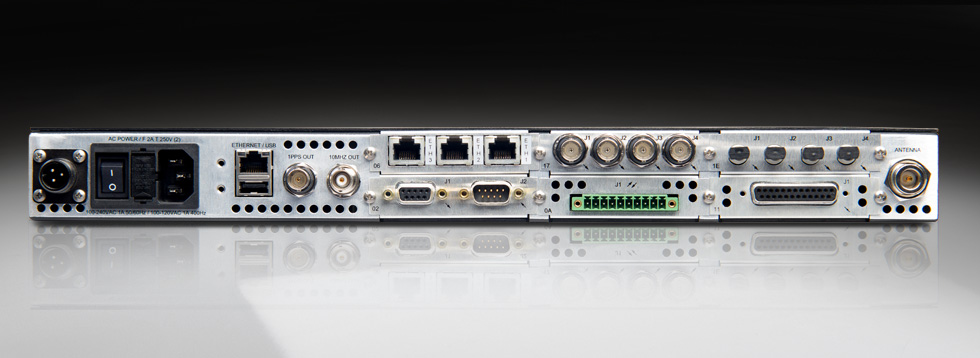

An important advantage of SecureSync is its unique rugged and flexible modular chassis that can be configured for your specific needs. Built-in time and frequency functions are extended with up to 6 input/output modules. Included with the base unit is an extremely accurate 1PPS timing signal aligned to a 10 MHz frequency signal without any phase discontinuity. A variety of internal oscillators (typically locked to GPS) are available depending on your requirement for holdover and phase noise.

The solution for indoor GPS timing. Consisting of an indoor GPS antenna panel, a configuration of Spectracom's SecureSync modular GPS time server and an interconnect cable, Skylight opens up new opportunities for accurate GPS time.

We have a wide range of specialist GNSS antennas & accessories to compliment our precision timing solutions - ensuring a reliable deployment of your GPS-based timing system.

• Standard outdoor antenna
• Anti-jam outdoor antenna
• Antenna mounting accessories
• RF up-down convertor kit
• Fibre-optic link
• Surge suppressor
• In-line amplifier
• Low-loss RF cable
