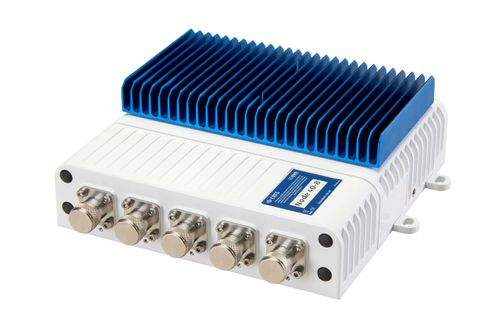

RFeye Node 40-8 - Intelligent Wideband Receiver

Big Performance, Small Price



Contact UsDatasheet




Description

The Node 40-8 is a purpose designed regulator focused RF receiver that combines high performance spectrum monitoring with a rugged form factor at an affordable price.

The new Node 40-8 is a class-leading RF receiver with a 40MHz instantaneous bandwidth and 9KHz to 8GHz frequency range. It is designed to help regulators monitor and manage the ever-changing spectrum at a price that fits their budget.

Built from the ground up with regulators in mind, Node 40-8 delivers the essentials. With exceptional sensitivity, low power, low data back-haul requirements and packaged in a lightweight weatherproof rugged form, the Node40-8 delivers 24/7 365 spectrum vigilance.

The RFeye Node 40-8 uses the latest superheterodyne receiver technology to provide outstanding quality and performance. It is a complete spectrum monitoring and geolocation system designed for remote deployment in distributed networks both indoors and outdoors, including in hostile environments. Packaged in a compact, rugged and weatherproof housing, it has been optimized for size, weight and power (SWaP) and is simple to connect to power and network.

The Node 40-8 is characterized by outstanding noise figure, channel re-tune time and spurious free dynamic range parameters, well above any other product in its class. It also offers all of the multi-mission capability of the RFeye product range allowing multiple concurrent measurements and geolocations to be performed and multiple users to connect simultaneously from remote locations.

  • Low SWaP
  • Low noise

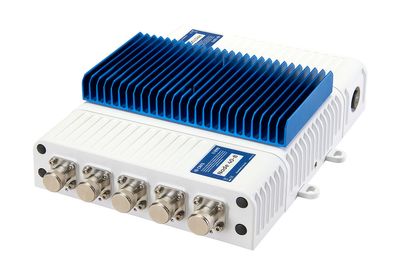

  • Rugged with optional IP67 covers

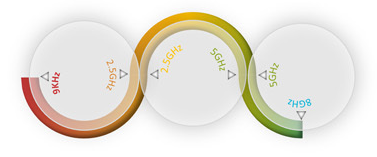

  • 9kHz – 8GHz
  • Ideal for Regulatory applications

Applications:



Rugged, Flexible Deployment

With its low Size, Weight and Power (SWaP) the 40-8 can be deployed where it is needed. It can be networked with other CRFS Nodes to provide spectrum monitoring and signal geolocation, both indoors and outdoors including remote hostile environments.






Technical Specifications:

Receiver specifications
Frequency range 9kHz to 8GHz


Single channel receiver

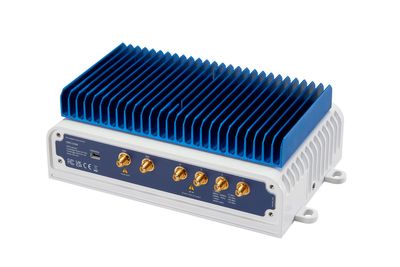

Switchable RF inputs 4 x SMA Connectors


Noise figures at maximum sensitivity*
9 kHz to 100 MHz 10 dB typical
100 MHz to 2.4 GHz 6 dB typical
2.4 GHz to 6 GHz 7 dB typical
6 GHz to 8 GHz 8 dB typical
Phase noise
Receiver input at 1 GHz –110 dBc/Hz at 20 kHz offset, typ.
Receiver input at 8 GHz –100 dBc/Hz at 20 kHz offset, typ.

Signal analysis
Max. instantaneous bandwidth 40 MHz
Tuning resolution 1 Hz

Cooling
Fanless – convective heat transfer

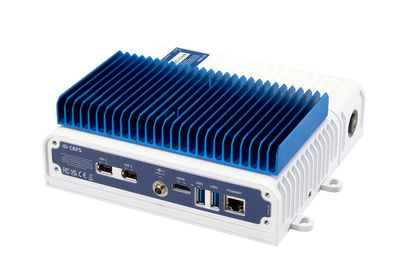

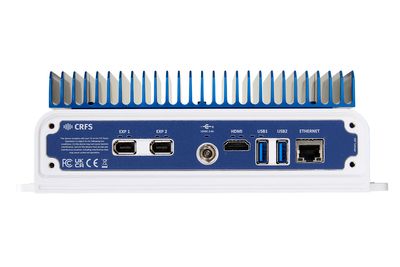

Gallery:
