2 Series MSO - Mixed Signal Oscilloscope

The Oscilloscope that works where you work


Visit Virtual Showroom




Product Description

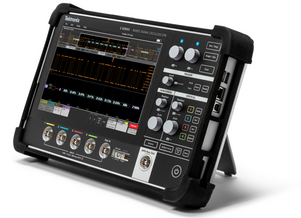

The 2 Series MSO features up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, 50 MHz AFG, 4-bit digital patten generator, advanced triggers, protocol decode, DVM and frequency counter is packed with features, all in a compact form factor about 1.5” thick making it the go-to oscilloscope for electronic debug and test, no matter where you work. With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope The optional battery pack extends the instrument capabilities by enabling the same instrument that is used in the lab to also be used in the field. A large catalog of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.


Thin, Lightweight Design Battery Powered

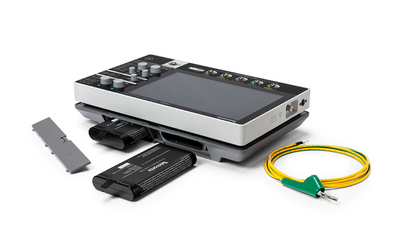

Compact, industry-leading form factor unlocks valuable bench space without compromising performance. Front and side I/O allow easy connectivity. Optional battery pack supports two batteries with an estimated six hours run time. Batteries can be hotswapped to extend operating time.


Modern Touchscreen Display Full Featured Analysis Software Enabled

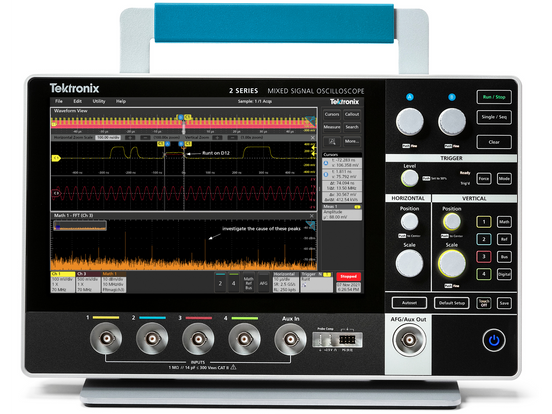

Intuitive 10.1-inch capacitive color
touchscreen with simplified user
interface enables quick access to
any function.
Comprehensive analysis capabilities
with 36 automated measurements,
advanced math, FFT with gating,
search and mark, limit, and eye mask.
Built-in support for TekDrive enables a collaborative data workspace. Also works with TekScope off-line analysis software.



Serial Decode All-in-One Convenience VESA Mount & Accessories




Optional serial decode and trigger
package is ideal for testing today’s
complex embedded designs.
Built-in optional 16 channel MSO, 50 MHz
AFG, 4-bit pattern generator and DVM/
counter ideal for testing digital circuits or
stimulating the circuit under test.
Built in VESA interface enables use
of off-the-shelf VESA accessories.
Optional rack mount, protective case,
and kickstand enable different uses.



Product Range: 2 series MSO
Analog Channels: 2 or 4
Bandwidth: 70MHz/100MHz/200MHz/350MHz/500MHz
Sampling Rate: 2.5 GS/s Half channels and 1.25 GS/s All channels
Record Length: 10 M points per channel
Display Type: • 10.1-inch TFT color • WXGA (1280 x 800) resolution • Capacitive (multi-touch) touchscreen
Resolution: 8 bit
Ports: 2 USB Hot, 1 USB Device, 1 Ethernet
Standard Warranty: 1 year


 Ships with


TPP0200 200 MHz, 10x probe (one per channel)
• Instrument stand
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese)
• Embedded help
• External power supply
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
. One-year warranty covering all parts and labor cost on the instrument and the included probes
and probes
• One-year software maintenance that provides access to new firmware releases with updates




How To Videos: Tektronix 2 Series Mixed Signal Oscilloscope


 Top 5 Reasons You Need One  Remote Control Via VNC  Search Functionality
 Differential Can Decode  Cursors And Measurement  Enabling FFT Capability
 i2C Serial Decode  Mask Testing  Decoding RS232
 Runt Trigger  Stacked Vs Overlay Mode  Tekdrive Recall Scope Setup
 Tekdrive Session Share  Callouts  Built-In Arbitrary Function Generator
