APSIN Microwave Models - up to 26.5 GHz

9 kHz to 12, 20 or 26.5 GHz Signal Generators




Contact Us


The APSINXXG is an analog signal generator (analog signal source) series covering RF and microwave frequency ranges from 9 kHz to 12, 20 and 26.5 GHz. A combination of chracteristics such as good signal purity, low phase noise and fast switching speed, along with their very compact size, low weight and low power consumption makes the instruments very well usable in labs, production halls and outdoor fields.



The main features of these RF and microwave signal generators (signal sources) are:

  • OCXO stabilized low phase noise signal with MHz resolution
  • wide and accurately levelled output power range
  • extensive modulation capabilities such as AM, FM, PM, Pulse Modulation, and Frequency Chirp, etc.
  • fast switching of 30 µs
  • sweep, trigger functions and user-programmable external reference frequency between 1 to 250 MHz
  • low power consumption and low power dissipation
    with an optional built-in battery module, allowing for outdoor field application of up to 3 hours
  • various mechnical housing forms: portable / bench-top, 19″ rack-mountable, etc.
  • local front panel operation, PC controlled local or remote operation through the communication ports USB, Ethernet and optionally GPIB, and by using GUI Software or ATE commands (SCPI 1999)

The APSINXXG RF and microwave signal generators are suitable for many applications in labs, production halls and outdoor field:

  • as general purpose portable RF and microwave signal sources for testing of electonic, wireless, and satellite modules and systems
  • EMC/EMI testing
  • service, maintenance and verification
  • signal simulation (radar, analogly modulated radio, wireless and satellite, aerospace & defense, etc.)
  • especially the 19″ rack-mountable version for system integration






Frequency Range

100 kHz to 12, 20 or 26.5 GHz (9 kHz with option 9K)

Frequency Resolution

0.001 Hz

Power Range

-20 to +15 dBm, -90 to +25 dBm (with option PE3 and HP)

Power Resolution

0.01 dB

Switching Speed

400 µs (<30 µs with option FS)

Phase Noise At 1 GHz: at 10 Hz offset

-80 dBc/Hz

Phase Noise At 1 GHz: at 1 kHz offset

-117 dBc/Hz

Phase Noise At 1 GHz: at 100 kHz offset

-128 dBc/Hz

Phase Noise At 1 GHz: at 10 MHz offset

-150 dBc/Hz

Remote Control

Ethernet, GPIB, USB (SCPI v1999)


AM, Chirp, FM, PM, Pulse


Frequency, List, Power

Dimensions (W x L x H), Weight

173.6 x 261.7 x 116.9 mm [6.83 x 10.30 x 4.60 in], 2.5 kg




• R&D low noise signal source
• Production testing
• Service and maintenance
• Signal simulation
• Aerospace & Defense
• Installation and maintenance



• High output power, low phase noise
• Comprehensive AM, low-distortion, wideband DC-FM, and high-speed pulse modulation
• Powerful trigger and sweeping modes
• Portable battery operation








1URM 19” 1HU rack-mount module
9K Frequency range extension to 9 kHz (APSIN12G / 20G)
B3 Internal rechargeable battery module
BAG AnaPico Bag
DATA Commercial Calibration Certificate with test data
EB6 External power bank adapter cable with voltage converter for 12-25 V supply
FLASH MicroSD card slot for removable SD memory
FS Ultra-fast switching speed
GPIB GPIB interface
HP Higher output power
IEC IEC 17025 calibration with certificate
NM Remove modulation (APSIN20G / 26G)
NP Narrow pulse modulation
OEM OEM package
PE Mechanical step attenuator (26 GHz version: down to -90 dBm)
PE2 Mechanical step attenuator (down to -120 dBm)
PE3 Mechanical step attenuator (6 GHz version: down to -120 dBm / 12 & 20 GHz version: down to -90 dBm)
REAR Move output to the rear panel
ReCal Recalibration with test data (recommended: two years interval)
Retrofit Applies when options are back-ordered
RM 19″ 3HU rack-mount kit
WE One year warranty extension (standard: 2 years)
APSIN12G 100 kHz – 12 GHz
APSIN20G 100 kHz – 20 GHz

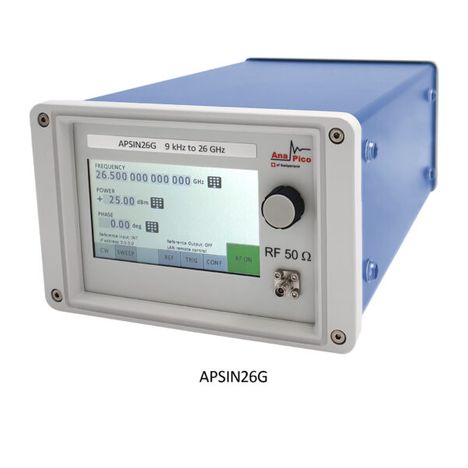

APSIN26G 100 kHz – 26.5 GHz
