The APSINX010 is an analog RF signal generator (analog signal source) series covering RF frequency ranges from 9 kHz to 2, 4 and 6.1 GHz. A combination of chracteristics such as good signal purity, low phase noise, fast switching speed and wide output power range, along with their very compact size, low weight and low power consumption makes the instruments very well usable in labs, production halls and outdoor fields.



The main features of these RF signal generators (RF signal sources) are:

  • OCXO stabilized low phase noise signal with mHz resolution
  • wide and accurately levelled output power range
  • extensive modulation capabilities such as AM, FM, PM and Pulse Modulation, as well as those avionics dedicated modulations VOR/ILS
  • fast switching
  • sweep, trigger functions and user-programmable external reference frequency between 8 to 200 MHz
  • low power consumption and low power dissipation, no noisy fan
    with an optional built-in battery module, allowing for outdoor field application of up to 3 hours
  • various mechnical housing forms: portable / bench-top, 19″ rack-mountable, etc.

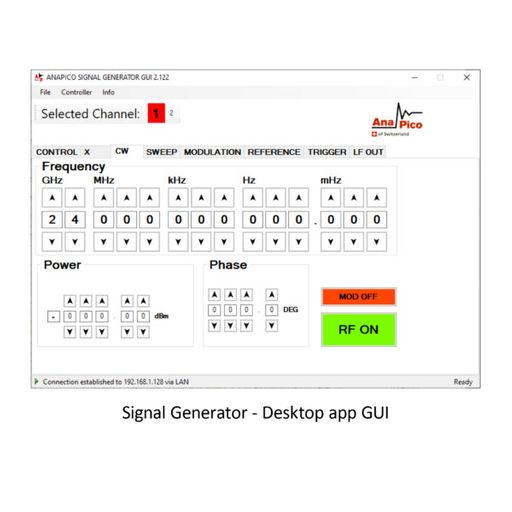

  • local front panel operation, PC controlled local or remote operation through the communication ports USB, Ethernet and optionally GPIB, and by using GUI Software or ATE commands (SCPI 1999)

The APSINX010 RF signal generators are suitable for many applications in labs, production halls and outdoor field:

  • as general purpose portable RF signal sources for testing of electonic, wireless, satellite and avionic modules and systems
  • EMC/EMI testing
  • service and maintenance and verification
  • especially the 19″ rack-mountable version for system integration






Frequency Range

9 kHz to 2.0, 4.0 or 6.1 GHz

Frequency Resolution

0.001 Hz

Power Range

-120 to +17 dBm (with option PE3)

Power Resolution

0.01 dB

Switching Speed

400 µs

Phase Noise At 1 GHz: at 10 Hz offset

-80 dBc/Hz

Phase Noise At 1 GHz: at 1 kHz offset

-117 dBc/Hz

Phase Noise At 1 GHz: at 100 kHz offset

-130 dBc/Hz

Phase Noise At 1 GHz: at 10 MHz offset

-150 dBc/Hz

Remote Control

Ethernet, GPIB, USB (SCPI v1999)


AM, Chirp, FM, PM, Pulse


Frequency, List, Power

Dimensions (W x L x H), Weight

173.6 x 270.7 x 116.9 mm [6.83 x 10.66 x 4.60 in], 2.5 kg




• R&D low noise signal source
• Production testing
• Service and maintenance
• Signal simulation
• Aerospace & Defense
• Installation and maintenance



• High output power, low phase noise
• Comprehensive AM, low-distortion, wideband DC-FM, and high-speed pulse modulation
• Powerful trigger and sweeping modes
• Portable battery operation









1URM 1U rack-mount module
AVIO Avionics modulation capability (VOR/ILS)
B3 Internal rechargeable battery module
BAG AnaPico Bag
DATA Commercial Calibration Certificate with test data

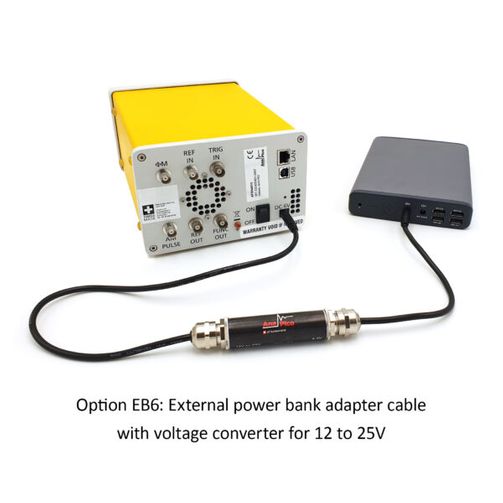

EB6 External power bank adapter cable with voltage converter for 12-25 V supply
FLASH MicroSD card slot for removable SD memory
GPIB GPIB interface
IEC IEC 17025 calibration with certificate
OEM OEM package
PE3 mechanical step attenuator
REAR Move output to the rear panel
ReCal Recalibration with test data (recommended: two years interval)
Retrofit Applies when options are back-ordered
RM 19″ 3HU rack-mount kit
WE One year warranty extension (standard: 2 years)
APSIN2010HC 9 kHz – 2000 MHz
APSIN4010HC 9 kHz – 4000 MHz

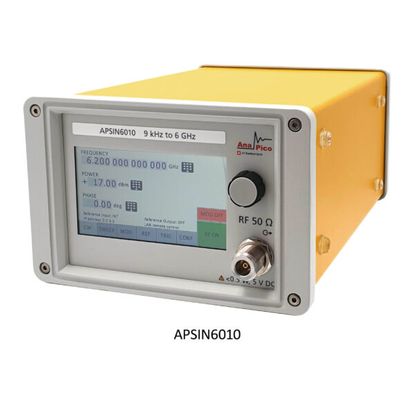

APSIN6010HC 9 kHz – 6100 MHz
